Supra Cat 8 Ethernet cables

The current Supra Ethernet cable: CAT 8

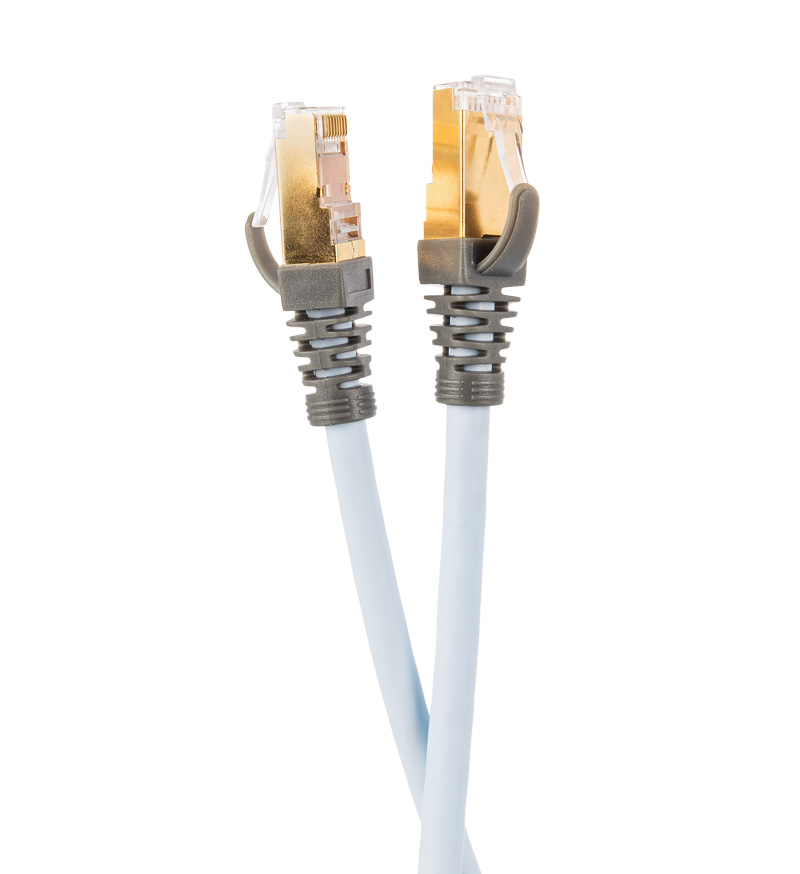

Supra Cat 8 shielded Ethernet patch cable, featuring "low smoke" Halogen-Free insulation




Supra Cat 8
is one step ahead by providing a future proof cable supporting up to 40GBASE-T over a single cable. It is backwards compatible with standard Cat 6A. Supra Cat 8 is terminated with an improvement of the widely used RJ45 to be able to support the extreme performance that our cable provides. It ups the performance 4 times from Cat 6A with a bandwidth of 2000 MHz.

Supra Cat 8 is used advantageously in TCP/IP and UDP application where correct data information is critical, e.g. 4K and 8K video streaming, high quality music streaming, gaming, data centres and in-building installations. By upping the performance 4 times to 2000 MHz you are more likely to have no incorrect data being sent or not being corrected by applications in time as there is much more bandwidth to work with. This can be very important to avoid for example video loss in streaming or avoiding stuttering in music streaming and voice communication.

Supra Cat 8 is constructed with double shielding instead of single shielding to best avoid interference and in so data losses than can be critical to applications It is also ideal for Power over Ethernet (PoE) applications as it has larger copper cross-section than Cat 6A, meaning high power and less voltage drops.

But don't just take our word for it:

"For the price, this is an excellent cable that works extremely well and importantly won't become obsolete in the near future" - Neville Roberts, Hi-Fi Choice October 2016



Assembled with Supra Cat 8 RJ45 male plugs.

Capability characteristics:
Better than Category "8.2" acc. to draft IEC 61156-10, excellent NEXT, low attenuation, excellent screen properties (pair- and overall screen), low Skew bandwidth 2000 MHz

Applications:
Connecting cable and patch cord for generic cabling systems acc. to ISO/IEC 11801 and EN 50173 (2nd edition) and for data centre cabling acc. to ISO/IEC 24764 and EN 50173-5 as well TR 11801-99-1. Ideal for all applications of class D up to FA and Class II, Multimedia (TV, Video, Data, Voice) >40 GbE acc. to IEEE 802.3 bq (draft), Cable sharing, VoIP, PoE/PoE+

Mechanical Specifications:
Standard Cat 8 Patch cord
Connectors RJ45 Male
Signal Direction: <->

Application Examples:
Ethernet >40 Gb

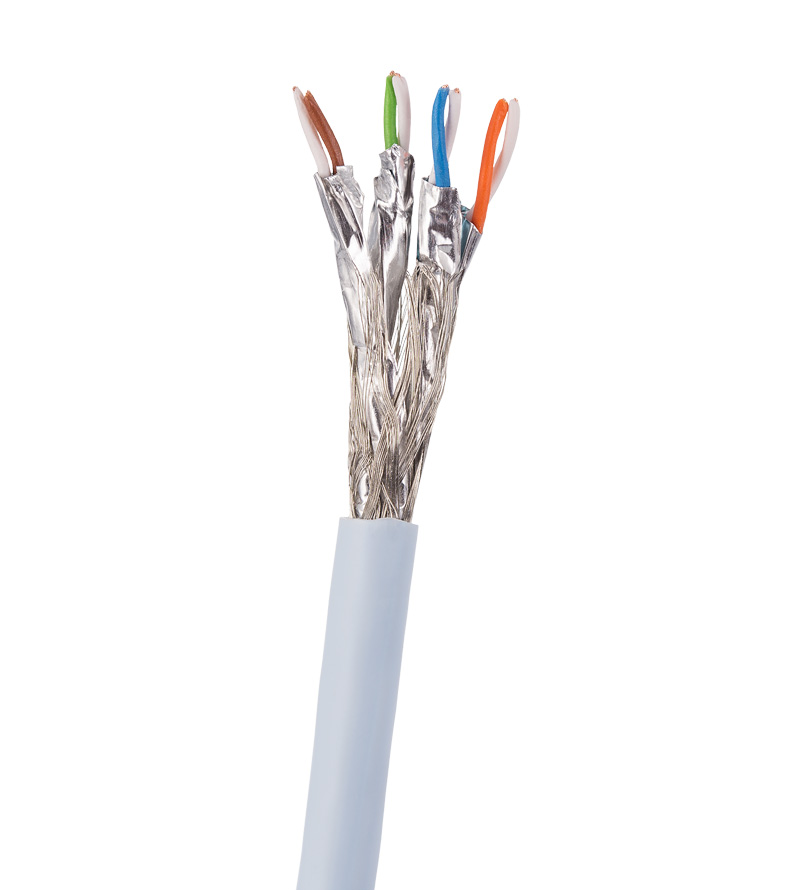

Construction:
Cable: 4 pair, Cat 8 S/STP PIMF
Cross Area: 0.23 sq mm/ / 26 AWG
Wire Material: Flex, Stranded 7 x OFC
Insulation: PE Foam
Inner Screen Coverage: Aluminium. Band & Braid, 100%
Jacket: PE FRHF
External Diameter: 6 mm
Flame retardancy: Yes, E30
Weight: 45 g/m
Bending radius (during installation): 8x overall diameter (ie 48 mm)
Bending radius (after installation): 4x overall diameter (ie 24 mm)

Electrical performance:
Resistance: 145 Ohm / km
Capacitance: 43 pF / m
Bandwidth: 2000 MHz
Skew@100 MHz: 5 ns / 100 m
Imp. Z: 100 Ohm
Velo Factor: 0.8c
8P/8C wired connectors as per T568B.

Standard lengths: 0.5m, 1m, 2m, 3m, 5m, 8m, 10m, 15m and 20m.
Other lengths upon order

--------------------------------------------------------
