Supra HF100 DVI Digital Video cables (2nd generation)

Supra cables HDMI FAQ

Please note that Supra HF100 2nd generation HDMI cables have now replaced by the HD5 3rd-generation cables.

Supra started shipping their "2nd generation" HDMI & DVI terminated cables in August 2005 and DVI terminated versions of the HF100 cables are available in a wide range of lengths from 1m to 20m.

Supra HF100 digital video cables are designed to run at high definition resolutions. Depending on the source resolution, the length of the cable and the receiving hardware, resolutions of 720p, 1080i and even 1080p can be carried by the HF100 cable, from sources such as set-top boxes, games consoles and 5" silver disc players.

NEW for 2010
As an option, we can also supply DVI-D cables in Halogen Free outer jackets, for those installations where fire-regulations prevent the use of the standard version. Please contact us for details, as these are currently supplied to order only.


a suitable socket for DVI-D to DVI-D cables:
(Note: this is a DVI 18+1 type connector that only accepts digital video, either as an output or as an input).
Supra cables DVI-D socket

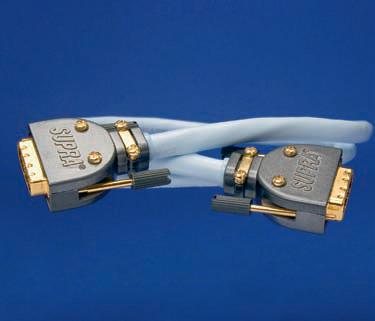

Supra cables Supra DVI cable

The new "HF100" cable has been purpose designed to run at high resolutions such as 720p, 1080i and 1080p even over long lengths and without problems.

The HF100 cable is terminated in the following ways:
  • DVI-D to DVI-D (using 18 pin connectors, carrying single link signals, in lengths up to 20 metres)
Supra cables Supra test pattern

The following list shows the product features for Supra HF100 Digital video cable:
  • 4 screened twisted pairs of solid OFC conductors (with a PE foam insulation layer) improve the High Frequency response for wide-bandwidth and efficient signal transfer
  • Heavy Double layer shielding: 1st layer: Aluminium foil, 2nd layer: Aluminium foil, shield signals from external influences and prevents the digital signal being radiated into nearby components or other cables
  • 0.8 micron thick 24k gold-plated contacts on connectors deliver long term reliability
  • Small form factor cable - diameter only 9.5 mm, enabling cable to be easily hidden.
Note that the Supra DVI connectors used are Jenving's own design and are removable and replaceable and made from die-cast aluminium, which give them good shielding properties.

DOWNLOAD THE HDMI / DVI FACTSHEET (approx 470 kb - as PDF - needs Adobe Acrobat)
